Enhancing Wind Measurement: Ground-Based LiDAR Solutions

At 3Dot Energy, we are committed to advancing wind energy technology and optimizing wind farm operations. One of the key components of effective wind resource assessment and turbine performance optimization is accurate wind measurement. Our ground-based LiDAR solutions offer a cutting-edge approach to gathering precise wind data, enabling wind farm operators to make informed decisions and maximize energy production. Let’s explore the features, specifications, and benefits of our ground-based LiDAR systems, including offerings from Move Laser and WindCube.

Introduction to Ground-Based LiDAR Technology:

Ground-based LiDAR technology revolutionizes the way wind measurements are conducted in the renewable energy industry. By emitting laser pulses and analyzing their reflection off aerosols, dust, and other particles in the atmosphere, LiDAR systems can accurately measure wind speed, direction, and other atmospheric parameters at various heights above ground level. This non-intrusive and remote sensing approach offers several advantages over traditional meteorological mast installations, including cost-effectiveness, versatility, and ease of deployment.

Move Laser’s MOLAS LiDAR:

We 3dot Energy supply ground based LiDAR (MOLAS B300) and Nacelle mounted LiDAR (MOLAS NL) by Nanjing Movelaser Co. Ltd. in Indian market.

It has been tested and calibrated by Deutsche WINDGUARD, Germany (the world’s leading wind assessment agency), and China Meteorological Administration. According to the calibration it shows a very good data availability of more than 99% and shows an excellent correlation to cup anemometers in terms of 10 min averages of the horizontal wind speed component. The square of correlation coefficient about 0.99.

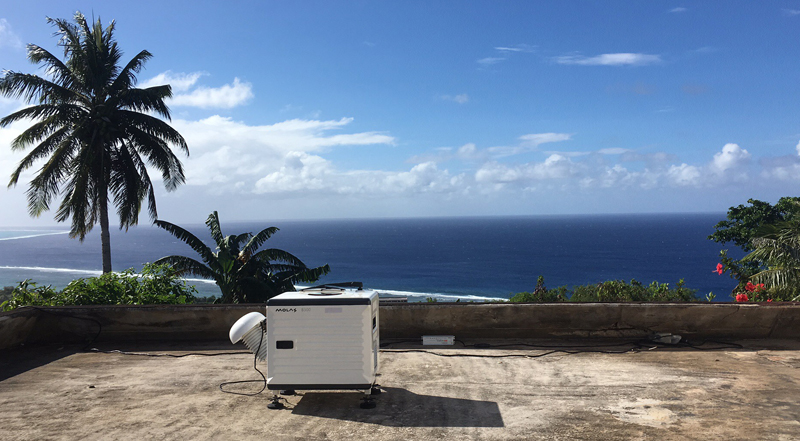

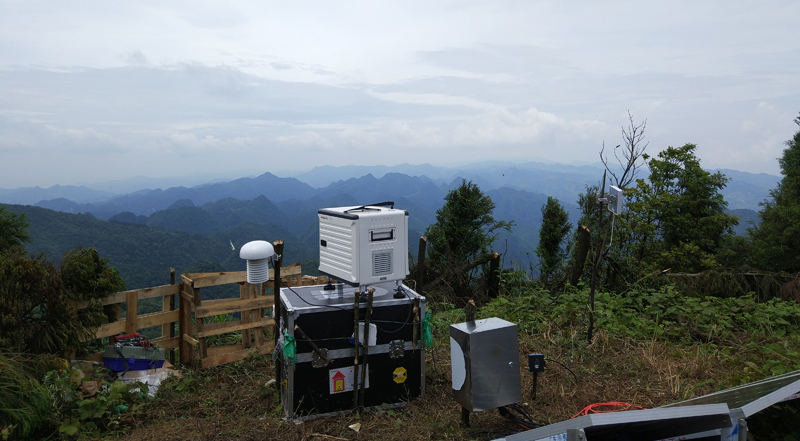

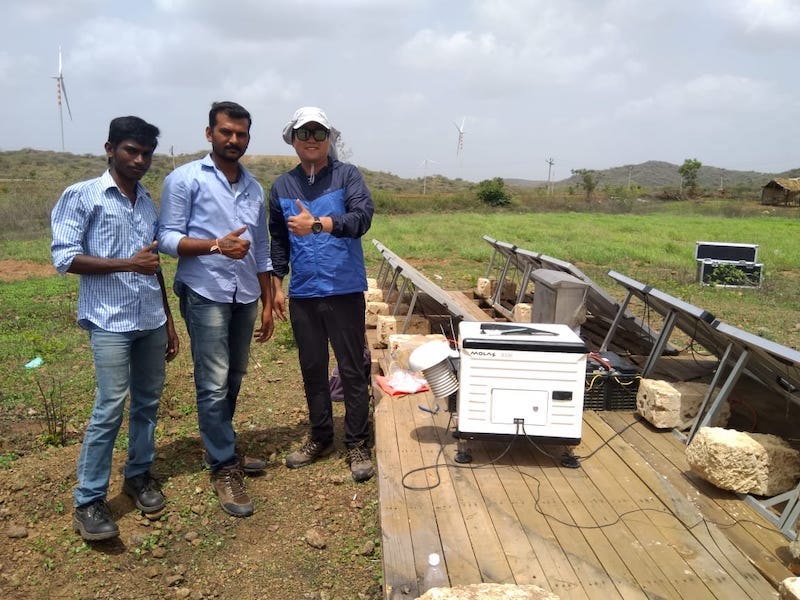

It has deployed in various places in China and some systems has deployed in India. Our engineers are trained by Movelaser for installation, configuration, commissioning, maintenance and on-site repairing works. LiDAR device can be supply on basis of procurement and also on monthly rental basis.

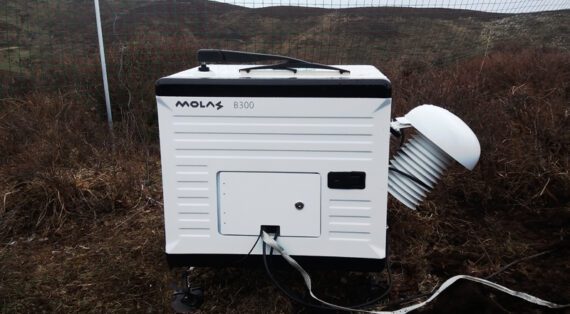

Move Laser’s MOLAS B300 Onshore LiDAR:

Move Laser’s MOLAS B300 Onshore LiDAR is designed specifically for onshore wind resource assessment and wind farm optimization. With its advanced features and robust performance, this LiDAR system offers unparalleled accuracy and reliability in wind measurement. Key specifications of the MOLAS B300 Onshore LiDAR include:

• Measurement Range: 30 to 300 meters
• Measure the number of Heights: 12 (User Configurable)
• Sampling frequency: 1Hz
• Wind speed measurement accuracy:  0.1m/s
• Wind direction measurement accuracy: 1°
• Wind speed measurement range: 0~75m/s
• Wind direction measurement range: 0~360°
• Data output: Horizontal wind speed, vertical wind speed, wind direction, time stamp, GPS, temperature and humidity pressure, statistical data.

• Data Format: ASCII
• Communication: RJ45 Cable, 3G/4G,WiFi, and Satellite communication (optional)
• Protection level: IP67 (Housing)

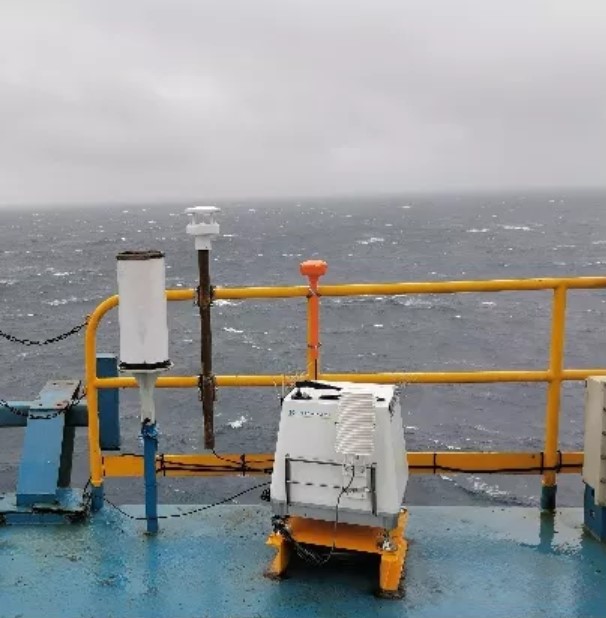

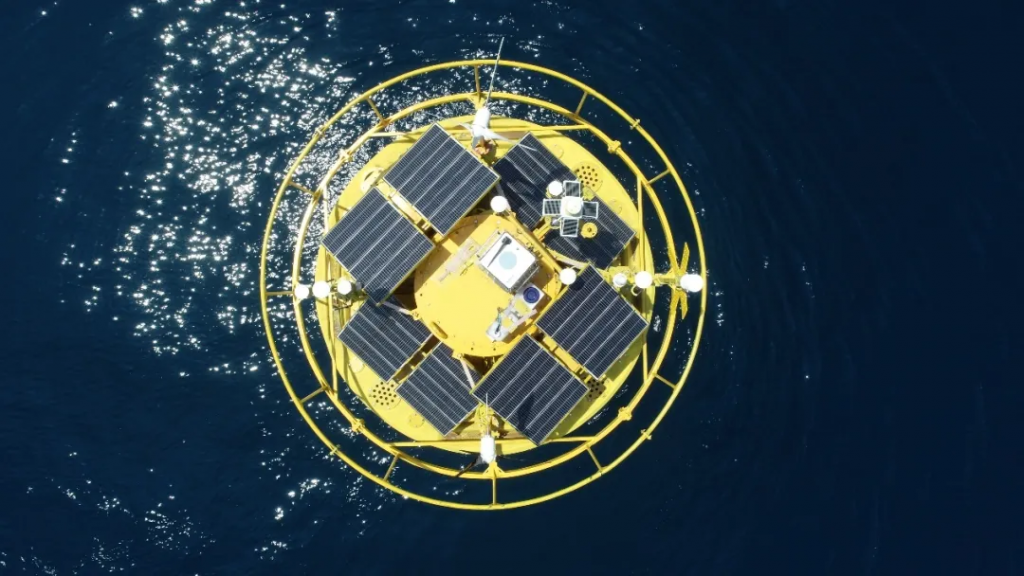

MOLAS M300 Offshore LiDAR:

Move Laser’s MOLAS M300 Offshore LiDAR is specifically engineered to meet the demanding requirements of offshore wind resource assessment and turbine performance monitoring. With its rugged design and marine-grade construction, this LiDAR system delivers accurate and reliable measurements in harsh offshore environments. Key specifications of the MOLAS M300 Offshore LiDAR include:

• Measurement Range: 30 to 300 meters
• Measure the number of Heights: 12 (User Configurable)
• Sampling frequency: 1Hz
• Wind speed measurement accuracy:  0.1m/s
• Wind direction measurement accuracy: 1°
• Wind speed measurement range: 0~75m/s
• Wind direction measurement range: 0~360°
• Data output: Horizontal wind speed, vertical wind speed, wind direction, time stamp, GPS, temperature and humidity pressure, statistical data.

• Data Format: ASCII
• Communication: RJ45 Cable, 3G/4G,WiFi, and Satellite communication (optional)
• Protection level: IP67 (Housing)

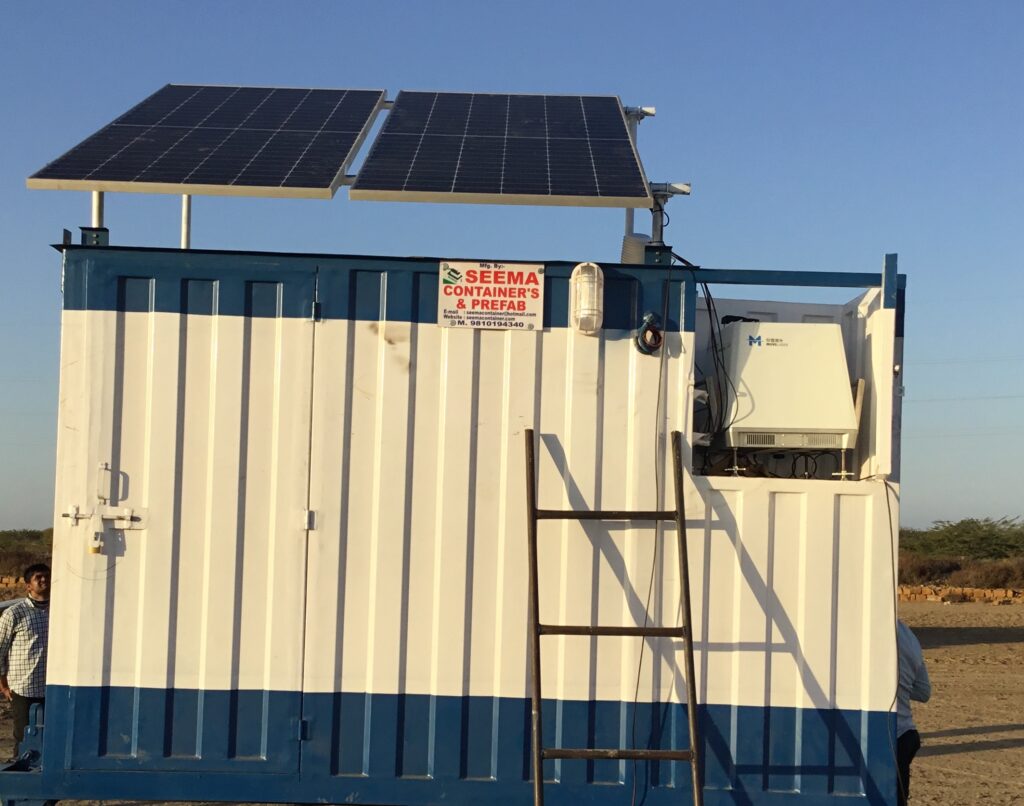

WindCube LiDAR:

In addition to Move Laser’s LiDAR solutions, we also offer WindCube LiDAR systems for wind resource assessment and turbine performance monitoring. With its compact design, high accuracy, and versatility, the WindCube LiDAR is suitable for various applications, including onshore and offshore wind farms. Key specifications of the WindCube LiDAR include:

• Measurement Range: 40m to 300m Constant measuring probe (spatial resolution)
• Data sampling rate: 1 Hz 10.000 measurement pulses accumulated every 0,8 seconds
• Measuring distances: 20 user defined distances simultaneously
• Radial Wind Speed range: -23m/s to +23m/s
• Reconstructed Wind Speed range: 0m/s to 49m/s
• Reconstructed Wind Direction range: 0 – 360°
• Speed accuracy: 0.1 m/s
• Direction accuracy: 2°
• Beam geometry: 4 inclined beams at 28° + 1 vertical beam

Benefits of Ground-Based LiDAR Solutions:

High Accuracy: Ground-based LiDAR systems offer high accuracy in wind measurement, providing reliable data for wind resource assessment and turbine performance optimization.

Cost-Effectiveness: Compared to traditional meteorological mast installations, LiDAR systems offer a more cost-effective solution for wind measurement, reducing upfront capital investment and ongoing maintenance costs.

Versatility: Ground-based LiDAR systems are versatile and can be deployed in various terrains and environments, including onshore and offshore wind farms, making them suitable for a wide range of applications.

Remote Monitoring: With remote data transmission capabilities, LiDAR systems enable real-time monitoring of wind conditions and turbine performance, allowing for proactive decision-making and optimization of wind farm operations.

Partner with 3Dot Energy for Ground-Based LiDAR Solutions:

At 3Dot Energy, we are dedicated to providing innovative solutions to meet the evolving needs of the wind energy industry. With our comprehensive range of ground-based LiDAR systems, including offerings from Move Laser and WindCube, we empower wind farm operators to optimize their operations and achieve maximum efficiency and productivity. Contact us today to learn more about our LiDAR solutions and how we can support your wind energy projects.
